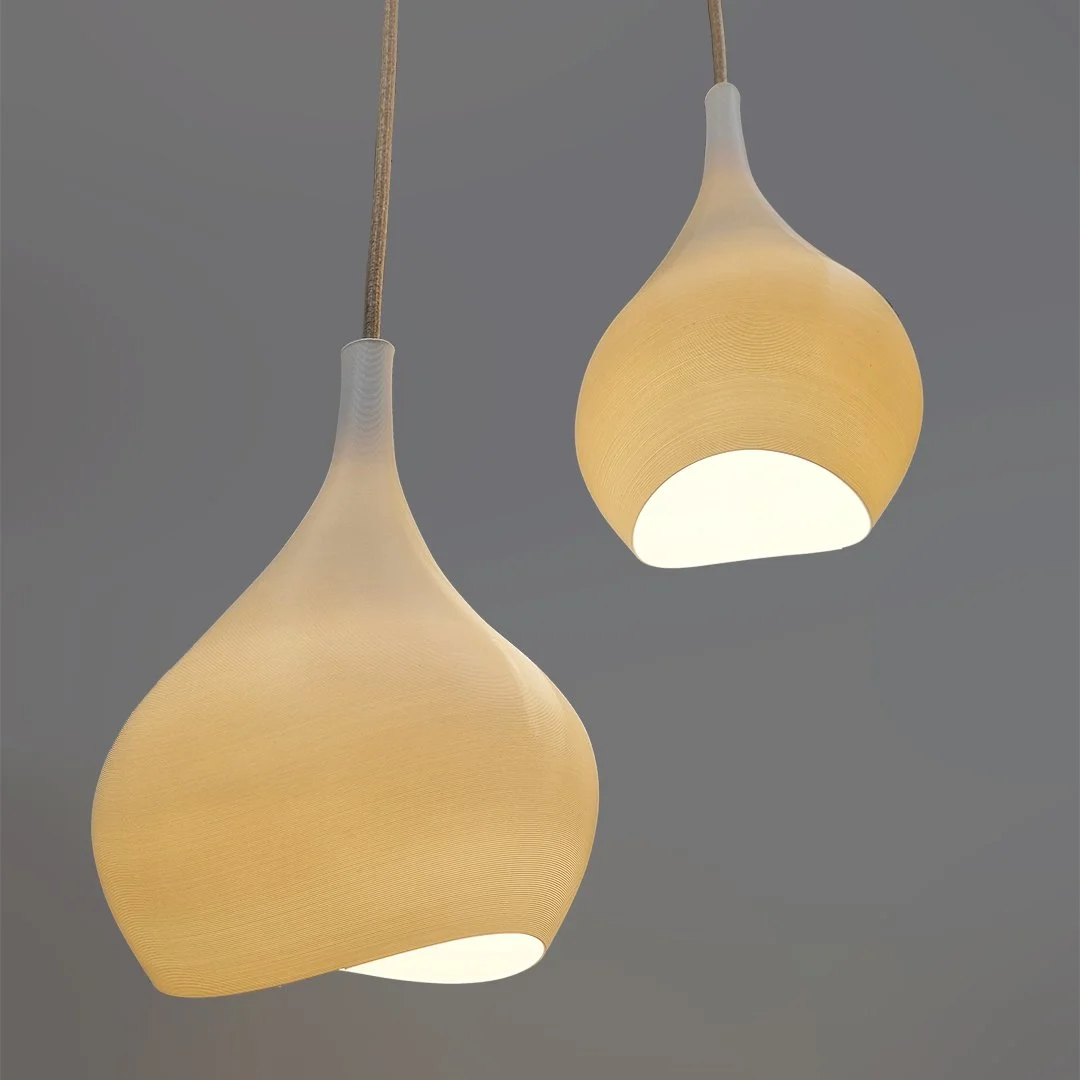

The Lacrimosa pendant design is truly unique. The asymmetric form is a slightly twisted tear drop with the light source tucked up inside, resulting in a low glare pendant. It is available in various sizes and curated arrangements. What makes Lacrimosa truly groundbreaking? It shatters the boundaries of traditional 3D FDM printing with an entirely non-planar print path. Unlike conventional printing, where layers are stacked flat, Lacrimosa’s print head moves continuously across all three axes—creating a seamless, flowing form that’s as bold as it is beautiful.
Available with a 340 degree optic that gives the form a strong glow or a narrow beam that has a more subtle glow but creates a soft pool of light below the pendant and boasts up to 121 luminaire lumens per circuit watt! This range is not simply for decoration, it is a useful lighting tool, with high efficacy and a variety of installation options. Lacrimosa Pro can provide practical light levels that don’t require supplementary lighting.
Standard finish options are white, textured - super matt black . Stone effect, moss green stone and red brick. We can also offer any classic RAL colour.










Product Family Technical
Rated median useful life : L90 - B10 - 50,000hrs @ Ta 25°
Chromacity tolerance (SCDM) : 3
Weight (Kg) : 0.45 incl. driver
Regional voltage (V) : 220 240V/ 50Hz
Product Code Structure
Luminaire Family
LACP
Type
P=Integral
Output
740
980
Output
360
470
Beam Angle
20
Beam Angle
77
CCT + CRI
927 = Ra90 / 2700K
930 = Ra90 / 3000K
940 = Ra90 / 4000K
Driver Type
F = Fixed Output *
D2 = DALI 2
C = Casambi
Body + Reflector Colour
WH = white (RAL9016)
MB = matt black (RAL7022)**
ST = stone effect **
RB = red brick **
MG = moss green stone **
“classic RAL” range, replace colour prefix code with RAL code.
IP Rating
20 = IP20
Example: LACP.I.740.20.930.D2.MG
*Grade A buy back only available with DALI 2 and Casambi enabled drivers
** 20° only (to increase efficacy) other beam angles available on request
Product Family Performance
Colour Temperature (CCT) | 2700 | |||||
Beam Angle (FWHM) | 20 | 77 | ||||
Shade Colour | White | MB / ST / RB / MG | White | |||
LED Lumens (LM) | 833 | 1089 | 833 | 1089 | 833 | 1089 |
Luminaire Lumens (LLM) | 736 | 962 | 720 | 942 | 353 | 461 |
Connected Load (CW) | 6.5 | 8.2 | 6.5 | 8.2 | 6.5 | 8.2 |
Efficacy (LLM/CW) | 113 | 117 | 110 | 114 | 54 | 56 |
Colour Temperature (CCT) | 3000 | |||||
Beam Angle (FWHM) | 20 | 77 | ||||
Shade Colour | White | MB / ST / RB / MG | White | |||
LED Lumens (LM) | 850 | 1111 | 850 | 1111 | 850 | 1111 |
Luminaire Lumens (LLM) | 751 | 982 | 731 | 961 | 360 | 470 |
Connected Load (CW) | 6.5 | 8.2 | 6.5 | 8.2 | 6.5 | 8.2 |
Efficacy (LLM/CW) | 115 | 119 | 113 | 117 | 55 | 57 |
Colour Temperature (CCT) | 4000 | |||||
Beam Angle (FWHM) | 20 | 77 | ||||
Shade Colour | White | MB / ST / RB / MG | White | |||
LED Lumens (LM) | 867 | 1133 | 867 | 1133 | 867 | 1133 |
Luminaire Lumens (LLM) | 766 | 1001 | 750 | 980 | 367 | 479 |
Connected Load (CW) | 6.5 | 8.2 | 6.5 | 8.2 | 6.5 | 8.2 |
Efficacy (LLM/CW) | 117 | 121 | 115 | 119 | 56 | 58 |
Polar Curves
20° Beam
77° Beam
Integral Driver
Remote Driver
Dimensions
Track Mount (in-track driver)
